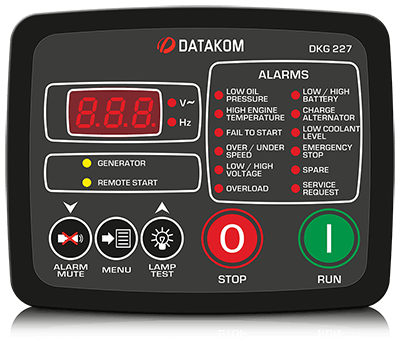

DKG-227 MANUAL AND REMOTE START UNIT
The DKG-227 is a comprehensive generator control unit designed to start and stop the generating set both manually and remotely.
The manual control is made using the pushbuttons on the front panel. The remote control is made via the REMOTE START input signal.
The unit is designed in a zero power consumption at rest structure.
The RUN and STOP pushbuttons select the operating mode. Other buttons select the display parameter scroll, alarm mute and lamp test functions.
The unit has 3 different operation modes:
- power off (no current drain from battery)
- power on (genset stopped)
- genset running
Manual starting and stopping
Zero power consumption at rest
Remote Start operation available
Engine control
Generator protection
Built in alarms and warnings
3 phase genset voltage inputs
1 phase genset CT input
Engine oil pressure measurement
Engine coolant temperature measurement
Genset active power measurement (single phase)
Genset power factor measurement (single phase)
Periodic maintenance request indicator
Engine hours run counter
Event logging
Statistical counters
Operation password capability
Front panel configurable
100+ adjustable parameters
Logic level serial port
Optional RS-232 adapter
Free MS-Windows Remote monitoring SW:
-local, LAN, IP and modem connection
-monitoring, download of parameters
LED displays
Configurable analogue inputs: 2
Configurable digital inputs: 5
Configurable relay outputs: 2
Total relay outputs: 4
Survives cranking dropouts
Sealed front panel
Plug-in connection system for easy replacement
