Home | Manual & Remote Start Units | DKG-215 Manual and Remote Start Unit

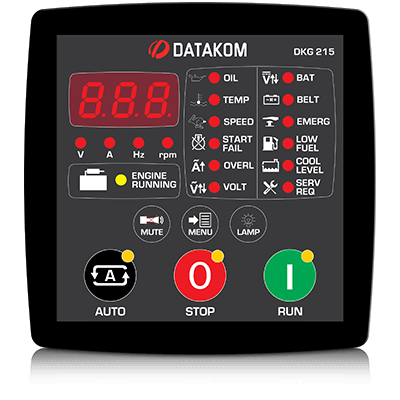

The DKG-215 is a comprehensive generator control unit designed to start and stop the generating set both manually and remotely.

The manual control is made using the pushbuttons on the front panel. The remote control is made via the REMOTE START input signal.

The unit is designed in a zero power consumption at rest structure and draws zero current in off mode.


The RUNSTOP and AUTO pushbuttons select the operating mode. Other buttons select the display parameter scroll, alarm mute and lamp test functions.

In RUN position, DKG-215 controls the automatic starting of the generating set . Once the generator is running, it  monitors internal protections and external fault inputs. If a fault condition occurs, the unit shuts down the engine automatically and indicates the failure source with the corresponding led lamp.

The DKG-215 provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations and operating sequences. The unauthorized access to program parameters is prevented by the program lock input. All programs may be modified via front panel pushbuttons, and do not require an external unit.

Manual and remote starting and stopping

Zero power consumption at rest

Engine control mode available

Generator protection

Built in alarms and warnings

1 phase genset voltage input

1 phase genset CT input

Magnetic Pickup input

Engine oil pressure measurement

Engine coolant temperature measurement

Engine fuel level measurement

Genset active power measurement (single phase)

Genset power factor measurement (single phase)

Periodic maintenance request indicator

Engine hours run counter

Event logging

Statistical counters

Front panel configurable

100+ adjustable parameters

Logic level serial port

Optional RS-232 adapter

Free MS-Windows Remote monitoring SW:


    -download of parameters

LED displays

Configurable analogue inputs: 3

Configurable digital inputs: 5

Digital outputs: 5

Survives cranking dropouts

Sealed front panel

Plug-in connection system for easy replacement

Small dimensions (96x96x53mm)

Product Brochure

User Manual

Parameter Setup and Monitoring Software: Rainbow

UL-CSA Certificate

Watertight Gasket

Screw Type Plastic Bracket

Spring Plastic Bracket
