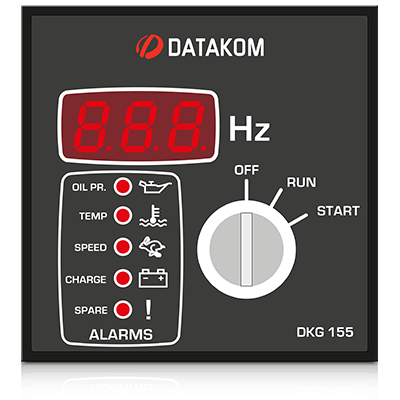

DKG-155 MANUAL START UNIT
The DKG-155 is a microprocessor controlled unit designed to start and stop the genset manually using the key switch on the front panel.
In the OFF position, the DC supply is removed from the module, thus zero power consumption is achieved.
Read More...When the engine is running, the unit monitors fault conditions and shuts-down the engine automatically in the occurrence of an alarm.
The alarms are identified by a group of LEDs displaying only the first occurring one.
The unit powers up when the RUN position on the front panel is selected. This will also energize the fuel solenoid relay.
The engine is started using the next spring-loaded position marked START. Once the engine has started, the switch should be released.
To shut down the engine, select the OFF position on the switch.
Microprocessor controlled
Manual fuel control and start
Automatic shutdown on fault condition
Survives cranking dropouts
Digital display of generator frequency
High engine temperature protection
Low oil pressure protection
Overspeed-underspeed protection
Spare fault input
Alarm output
Two part connectors for easy replacement
Standard panel dimensions (72x72mm)
Low failure rate
