The DKG-116 is a low cost, comprehensive unit designed to start and stop a generating set both manually and remotely.
The unit is suitable for both gasoline and diesel gensets. The standard unit controls gasoline engines. Diesel engine control is selected with a wire jumper connection.

The unit is only available in 12V version.

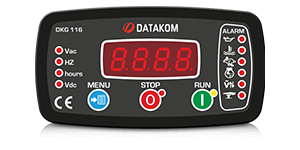

The manual control is made using RUN and STOP pushbuttons on the front panel. The remote control is made via REMOTE START input signal.

When the engine is running, the unit monitors fault conditions and shuts-down the engine automatically in the occurrence of an alarm. The alarms are identified by a group of LEDs displaying only the first occurring one.

The unit provides a set of digitally adjustable program parameters. All parameters are modified through front panel pushbuttons.

Both Manual and remote control

Generator protection

Built in alarms and warnings

Remote Start operation available

True RMS measurements

Tamper proof engine hours display

Field adjustable parameters

High current Fuel and Crank outputs

Optional auxiliary output

Optional magnetic pickup input

Digital inputs: 4

Survives cranking dropouts

Sealed front panel

Standard panel dimensions: 96x48mm

Plug-in connection system
