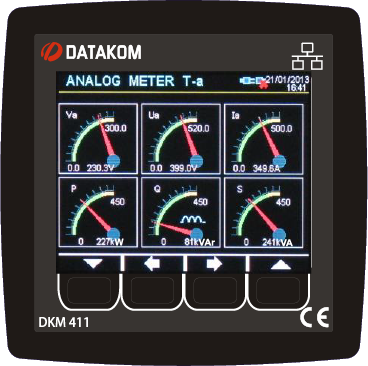

DKM-411 MK3 NETWORK ANALYSER
• IP COMMUNICATIONS
• FLEXIBLE WITH PLUG-IN MODULES
• HARMONIC ANALYSIS
• SCOPEMETER
The DKM-411 MK3 is an advanced precision metering device offering a 3.5” size, 320x240 pixel color TFT, together with unrivalled remote monitoring capabilities over internet in a compact and low-cost package.
The unit itself is a web server and can be opened through any browser for remote monitoring.
The central monitoring feature allows monitoring of thousands of meters from one central PC.
• True RMS measurements, 0.2% accuracy
• 3.5” TFT LCD, 320x240 pixels
• Harmonic distortion display (63 harmonics)
• Oscilloscope, waveform display
• Phasor diagram display
• Internal battery backed-up real time clock
• Max demand display
• User configurable display screen
• 2 configurable relay outputs
• Energy pulse output capability
• 2 opto-isolated, configurable digital inputs
• Dual active-reactive power counters
• Both mains/generator energy metering
• 4 quadrant energy counters
• Configurable user counters
• Voltage transformer ratio for MV applications
• Password protected front panel programming
• Universal supply input (both AC & DC)
• Reduced panel depth
• Sealed front panel (IP54)
• 3.5” Modbus RTU RS-485 and Modbus TCP/IP
• 3.5” SNMP
• 3.5” TCP/IP server / client
• 3.5” Embedded web server
• 3.5” Web monitoring and programming
• 3.5” GSM-SMS sending
• 3.5” e-mail sending
• 3.5” Central Monitoring through IP
• 3.5” Free configuration & monitoring software
