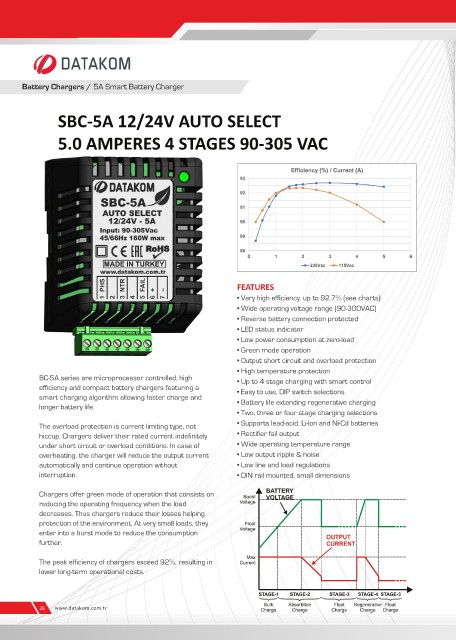

Page 26 - catalogue-2024

Battery Chargers / 5A Smart Battery Charger

SBC-5A 12/24V AUTO SELECT

5.0 AMPERES 4 STAGES 90-305 VAC

FEATURES
• Very high efficiency, up to 92.7% (see charts)
• Wide operating voltage range (90-300VAC)
• Reverse battery connection protected
• LED status indicator
• Low power consumption at zero-load
• Green mode operation
• Output short circuit and overload protection
• High temperature protection
BC-5A series are microprocessor controlled, high • Up to 4 stage charging with smart control
efficiency and compact battery chargers featuring a • Easy to use, DIP switch selections
smart charging algorithm allowing faster charge and • Battery life extending regenerative charging
longer battery life.
• Two, three or four stage charging selections
• Supports lead-acid, Li-Ion and Ni-Cd batteries
The overload protection is current limiting type, not
hiccup. Chargers deliver their rated current indefinitely • Rectifier fail output
under short circuit or overload conditions. In case of • Wide operating temperature range
overheating, the charger will reduce the output current • Low output ripple & noise
automatically and continue operation without • Low line and load regulations
interruption. • DIN rail mounted, small dimensions

Chargers offer green mode of operation that consists on
reducing the operating frequency when the load
decreases. Thus chargers reduce their losses helping
protection of the environment. At very small loads, they
enter into a burst mode to reduce the consumption
further.

The peak efficiency of chargers exceed 92%, resulting in
lower long-term operational costs.
