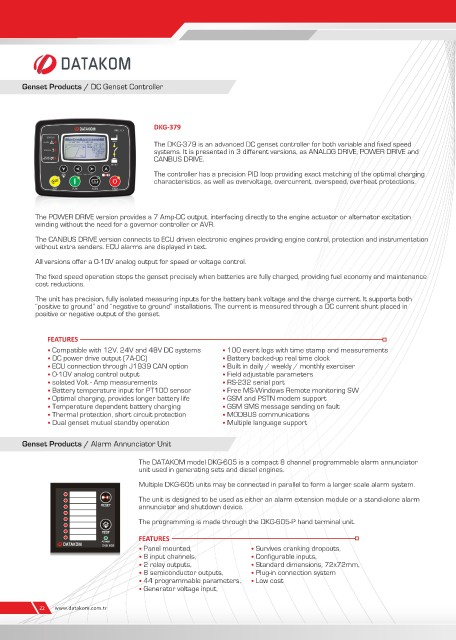

Page 22 - catalogue-2024

Genset Products / DC Genset Controller

DKG-379

The DKG-379 is an advanced DC genset controller for both variable and fixed speed
systems. It is presented in 3 different versions, as ANALOG DRIVE, POWER DRIVE and
CANBUS DRIVE.
The controller has a precision PID loop providing exact matching of the optimal charging
characteristics, as well as overvoltage, overcurrent, overspeed, overheat protections.

The POWER DRIVE version provides a 7 Amp-DC output, interfacing directly to the engine actuator or alternator excitation
winding without the need for a governor controller or AVR.

The CANBUS DRIVE version connects to ECU driven electronic engines providing engine control, protection and instrumentation
without extra senders. ECU alarms are displayed in text.
All versions offer a 0-10V analog output for speed or voltage control.

The fixed speed operation stops the genset precisely when batteries are fully charged, providing fuel economy and maintenance
cost reductions.

The unit has precision, fully isolated measuring inputs for the battery bank voltage and the charge current. It supports both
“positive to ground” and “negative to ground” installations. The current is measured through a DC current shunt placed in
positive or negative output of the genset.

FEATURES
• Compatible with 12V, 24V and 48V DC systems • 100 event logs with time stamp and measurements
• DC power drive output (7A-DC) • Battery backed-up real time clock
• ECU connection through J1939 CAN option • Built in daily / weekly / monthly exerciser
• 0-10V analog control output • Field adjustable parameters
• solated Volt - Amp measurements • RS-232 serial port
• Battery temperature input for PT100 sensor • Free MS-Windows Remote monitoring SW
• Optimal charging, provides longer battery life • GSM and PSTN modem support
• Temperature dependent battery charging • GSM SMS message sending on fault
• Thermal protection, short circuit protection • MODBUS communications
• Dual genset mutual standby operation • Multiple language support

Genset Products / Alarm Annunciator Unit

The DATAKOM model DKG-605 is a compact 8 channel programmable alarm annunciator
unit used in generating sets and diesel engines.

Multiple DKG-605 units may be connected in parallel to form a larger scale alarm system.
The unit is designed to be used as either an alarm extension module or a stand-alone alarm
annunciator and shutdown device.

The programming is made through the DKG-605-P hand terminal unit.
FEATURES
• Panel mounted, • Survives cranking dropouts,
• 8 input channels, • Configurable inputs,
• 2 relay outputs, • Standard dimensions, 72x72mm,
• 8 semiconductor outputs, • Plug-in connection system
• 44 programmable parameters, • Low cost
• Generator voltage input,
