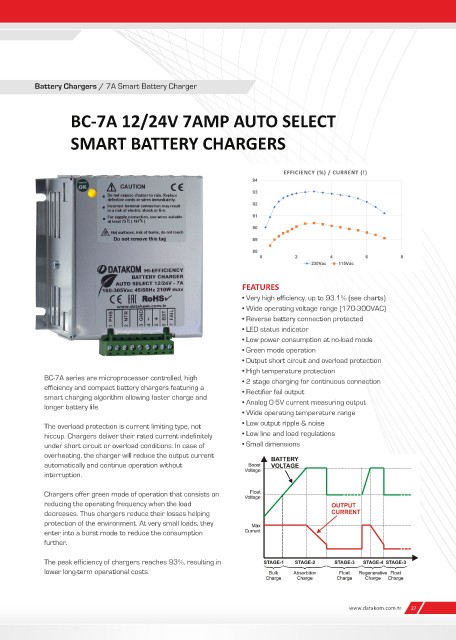

Page 27 - catalogue-2024

Battery Chargers / 7A Smart Battery Charger

BC-7A 12/24V 7AMP AUTO SELECT

SMART BATTERY CHARGERS

FEATURES
• Very high efficiency, up to 93.1% (see charts)
• Wide operating voltage range (170-300VAC)
• Reverse battery connection protected
• LED status indicator
• Low power consumption at no-load mode
• Green mode operation
• Output short circuit and overload protection
• High temperature protection
BC-7A series are microprocessor controlled, high • 2 stage charging for continuous connection
efficiency and compact battery chargers featuring a • Rectifier fail output
smart charging algorithm allowing faster charge and • Analog 0-5V current measuring output
longer battery life.
• Wide operating temperature range
• Low output ripple & noise
The overload protection is current limiting type, not
hiccup. Chargers deliver their rated current indefinitely • Low line and load regulations
under short circuit or overload conditions. In case of • Small dimensions
overheating, the charger will reduce the output current
automatically and continue operation without
interruption.

Chargers offer green mode of operation that consists on
reducing the operating frequency when the load
decreases. Thus chargers reduce their losses helping
protection of the environment. At very small loads, they
enter into a burst mode to reduce the consumption
further.

The peak efficiency of chargers reaches 93%, resulting in
lower long-term operational costs.
