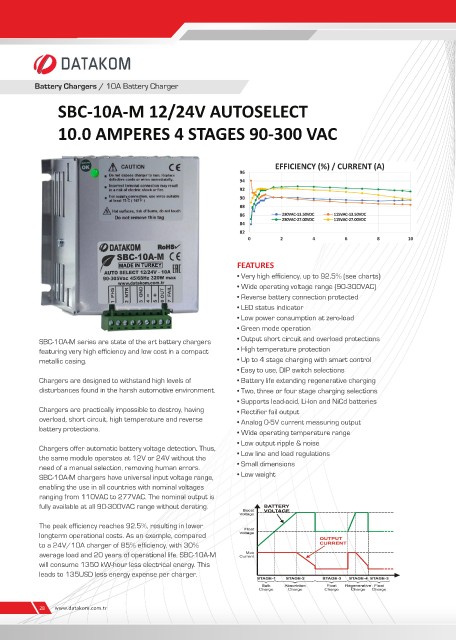

Page 28 - catalogue-2024

Battery Chargers / 10A Battery Charger
SBC-10A-M 12/24V AUTOSELECT

10.0 AMPERES 4 STAGES 90-300 VAC

FEATURES

• Very high efficiency, up to 92.5% (see charts)
• Wide operating voltage range (90-300VAC)
• Reverse battery connection protected
• LED status indicator
• Low power consumption at zero-load
• Green mode operation

SBC-10A-M series are state of the art battery chargers • Output short circuit and overload protections
featuring very high efficiency and low cost in a compact • High temperature protection
metallic casing. • Up to 4 stage charging with smart control
• Easy to use, DIP switch selections
Chargers are designed to withstand high levels of • Battery life extending regenerative charging
disturbances found in the harsh automotive environment. • Two, three or four stage charging selections
• Supports lead-acid, Li-Ion and NiCd batteries
Chargers are practically impossible to destroy, having • Rectifier fail output
overload, short circuit, high temperature and reverse • Analog 0-5V current measuring output
battery protections.
• Wide operating temperature range
• Low output ripple & noise
Chargers offer automatic battery voltage detection. Thus,
the same module operates at 12V or 24V without the • Low line and load regulations
need of a manual selection, removing human errors. • Small dimensions
SBC-10A-M chargers have universal input voltage range, • Low weight
enabling the use in all countries with nominal voltages
ranging from 110VAC to 277VAC. The nominal output is
fully available at all 90-300VAC range without derating.

The peak efficiency reaches 92.5%, resulting in lower
longterm operational costs. As an example, compared
to a 24V/10A charger of 85% efficiency, with 30%
average load and 20 years of operational life, SBC-10A-M
will consume 1350 kW-hour less electrical energy. This
leads to 135USD less energy expense per charger.
