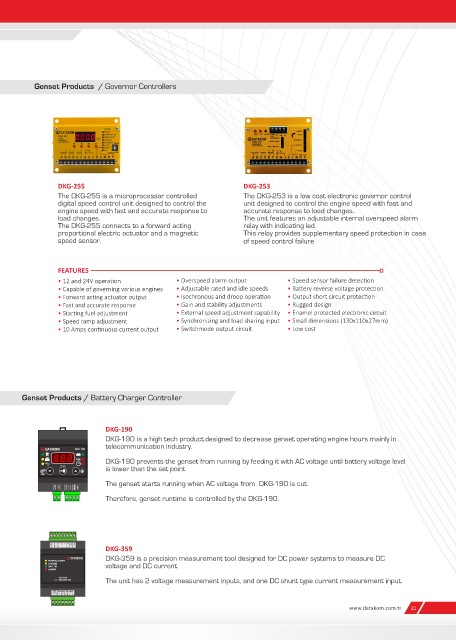

Page 21 - catalogue-2024

Genset Products / Governor Controllers

DKG-255 DKG-253
The DKG-255 is a microprocessor controlled The DKG-253 is a low cost electronic governor control
digital speed control unit designed to control the unit designed to control the engine speed with fast and
engine speed with fast and accurate response to accurate response to load changes.
load changes. The unit features an adjustable internal overspeed alarm
The DKG-255 connects to a forward acting relay with indicating led.
proportional electric actuator and a magnetic This relay provides supplementary speed protection in case
speed sensor. of speed control failure

FEATURES
• 12 and 24V operation • Overspeed alarm output • Speed sensor failure detection
• Capable of governing various engines • Adjustable rated and idle speeds • Battery reverse voltage protection
• Forward acting actuator output • Isochronous and droop operation • Output short circuit protection
• Fast and accurate response • Gain and stability adjustments • Rugged design
• Starting fuel adjustment • External speed adjustment capability • Enamel protected electronic circuit
• Speed ramp adjustment • Synchronizing and load sharing input • Small dimensions (130x110x27mm)
• 10 Amps continuous current output • Switchmode output circuit • Low cost

Genset Products / Battery Charger Controller

DKG-190
DKG-190 is a high tech product,designed to decrease genset operating engine hours mainly in
telecommunication industry.

DKG-190 prevents the genset from running by feeding it with AC voltage until battery voltage level
is lower than the set point
The genset starts running when AC voltage from DKG-190 is cut.

Therefore, genset runtime is controlled by the DKG-190.

DKG-359
DKG-359 is a precision measurement tool designed for DC power systems to measure DC
voltage and DC current.

The unit has 2 voltage measurement inputs, and one DC shunt type current measurement input.

www.datakom.com.tr 21
