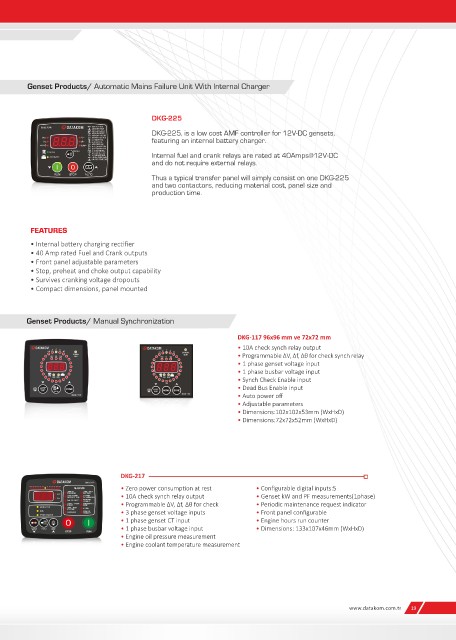

Page 19 - catalogue-2024

Genset Products/ Automatic Mains Failure Unit With Internal Charger

DKG-225

DKG-225, is a low cost AMF controller for 12V-DC gensets,
featuring an internal battery charger.
Internal fuel and crank relays are rated at 40Amps@12V-DC
and do not require external relays.
Thus a typical transfer panel will simply consist on one DKG-225
and two contactors, reducing material cost, panel size and
production time.

FEATURES
• Internal battery charging rectifier
• 40 Amp rated Fuel and Crank outputs
• Front panel adjustable parameters
• Stop, preheat and choke output capability
• Survives cranking voltage dropouts
• Compact dimensions, panel mounted

Genset Products/ Manual Synchronization

DKG-117 96x96 mm ve 72x72 mm
• 10A check synch relay output
• Programmable ΔV, Δf, Δθ for check synch relay
• 1 phase genset voltage input
• 1 phase busbar voltage input
• Synch Check Enable input
• Dead Bus Enable input
• Auto power off
• Adjustable parameters
• Dimensions:102x102x53mm (WxHxD)
• Dimensions:72x72x52mm (WxHxD)

DKG-217
• Zero power consumption at rest • Configurable digital inputs:5
• 10A check synch relay output • Genset kW and PF measurements(1phase)
• Programmable ΔV, Δf, Δθ for check • Periodic maintenance request indicator
• 3 phase genset voltage inputs • Front panel configurable
• 1 phase genset CT input • Engine hours run counter
• 1 phase busbar voltage input • Dimensions: 133x107x46mm (WxHxD)
• Engine oil pressure measurement
• Engine coolant temperature measurement
