> 8 relay outputs,

> Expandable to 16 relays with additional DKG-705R

> Both NO/NC contacts provided,

> Relay functions selectable from DKG-705

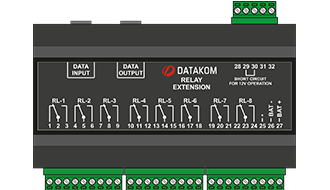

DKG-705R is a relay extension unit designed for use with DKG-705 unit. It has 8 16 amps. volt-free contact outputs.

The relay functions are selectable from a list of 112 entries using DKG-705 program mode. A maximum of 2 DKG-705R are cascadable expanding the relay count of DKG-705 to 23.

The connection to DKG-705 is made with a standard six wire telephone cable.
