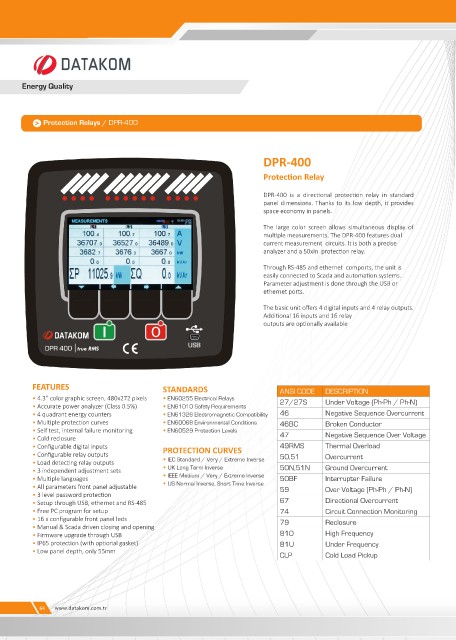

Energy Quality




             Protection Relays / DPR-400




                                                                        DPR-400

                                                                        Protection Relay

                                                                        DPR-400  is  a  directional  protection  relay  in  standard
                                                                        panel dimensions. Thanks to its low depth, it provides
                                                                        space economy in panels.
                                                                        The large color screen  allows  simultaneous  display of
                                                                        multiple measurements. The DPR-400 features dual
                                                                        current measurement  circuits. It is both a precise
                                                                        analyzer and a 50xIn  protection relay.

                                                                        Through RS-485 and ethernet  comports, the unit is
                                                                        easily connected to Scada and automation systems.
                                                                        Parameter adjustment is done through the USB or
                                                                        ethernet ports.

                                                                        The basic unit offers 4 digital inputs and 4 relay outputs.
                                                                        Additional 16 inputs and 16 relay
                                                                        outputs are optionally available








          FEATURES                           STANDARDS                      ANSI CODE   DESCRIPTION
          • 4.3” color graphic screen, 480x272 pixels  • EN60255 Electrical Relays   27/27S  Under Voltage (Ph-Ph / Ph-N)
          • Accurate power analyzer (Class 0.5%)  • EN61010 Safety Requirements
          • 4 quadrant energy counters       • EN61326 Electromagnetic Compatibility   46  Negative Sequence Overcurrent
          • Multiple protection curves       • EN60068 Environmental Conditions   46BC  Broken Conductor
          • Self test, internal failure monitoring  • EN60529 Protection Levels
          • Cold reclosure                                                  47          Negative Sequence Over Voltage
          • Configurable digital inputs      PROTECTION CURVES              49RMS       Thermal Overload
          • Configurable relay outputs                                      50,51       Overcurrent
          • Load detecting relay outputs     • IEC Standard / Very / Extreme Inverse
          • 3 independent adjustment sets    • UK Long Term Inverse         50N,51N     Ground Overcurrent
          • Multiple languages               • IEEE Medium / Very / Extreme Inverse  50BF  Interrupter Failure
          • All parameters front panel adjustable  • US Normal Inverse, Short Time Inverse  59  Over Voltage (Ph-Ph / Ph-N)
          • 3 level password protection
          • Setup through USB, ethernet and RS-485                          67          Directional Overcurrent
          • Free PC program for setup                                       74          Circuit Connection Monitoring
          • 16 x configurable front panel leds                              79          Reclosure
          • Manual & Scada driven closing and opening
          • Firmware upgrade through USB                                    81O         High Frequency
          • IP65 protection (with optional gasket)                          81U         Under Frequency
          • Low panel depth, only 55mm
                                                                            CLP         Cold Load Pickup
