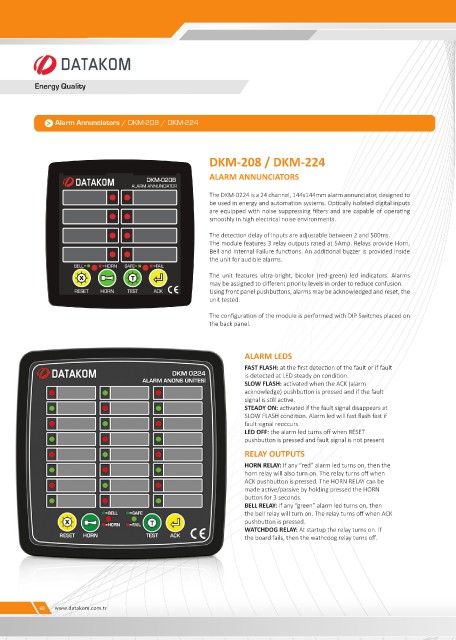

P. 68

Energy Quality




                Alarm Annunciators / DKM-208 / DKM-224




                                                         DKM-208 / DKM-224

                                                         ALARM ANNUNCIATORS

                                                         The DKM-0224 is a 24 channel, 144x144mm alarm annunciator, designed to
                                                         be used in energy and automation systems. Optically isolated digital inputs
                                                         are equipped with noise suppressing filters and are capable of operating
                                                         smoothly in high electrical noise environments.

                                                         The detection delay of inputs are adjustable between 2 and 500ms.
                                                         The module features 3 relay outputs rated at 5Amp. Relays provide Horn,
                                                         Bell and Internal Failure functions. An additional buzzer is provided inside
                                                         the unit for audible alarms.

                                                         The  unit  features  ultra-bright,  bicolor  (red-green)  led  indicators.  Alarms
                                                         may be assigned to different priority levels in order to reduce confusion.
                                                         Using front panel pushbuttons, alarms may be acknowledged and reset, the
                                                         unit tested.
                                                         The configuration of the module is performed with DIP Switches placed on
                                                         the back panel.



                                                                   ALARM LEDS
                                                                   FAST FLASH: at the first detection of the fault or if fault
                                                                   is detected at LED steady on condition.
                                                                   SLOW FLASH: activated when the ACK (alarm
                                                                   acknowledge) pushbutton is pressed and if the fault
                                                                   signal is still active.
                                                                   STEADY ON: activated if the fault signal disappears at
                                                                   SLOW FLASH condition. Alarm led will fast flash fast if
                                                                   fault signal reoccurs.
                                                                   LED OFF: the alarm led turns off when RESET
                                                                   pushbutton is pressed and fault signal is not present
                                                                   RELAY OUTPUTS
                                                                   HORN RELAY: If any “red” alarm led turns on, then the
                                                                   horn relay will also turn on. The relay turns off when
                                                                   ACK pushbutton is pressed. The HORN RELAY can be
                                                                   made active/passive by holding pressed the HORN
                                                                   button for 3 seconds.
                                                                   BELL RELAY: If any “green” alarm led turns on, then
                                                                   the bell relay will turn on. The relay turns off when ACK
                                                                   pushbutton is pressed.
                                                                   WATCHDOG RELAY: At startup the relay turns on. If
                                                                   the board fails, then the wathcdog relay turns off.
