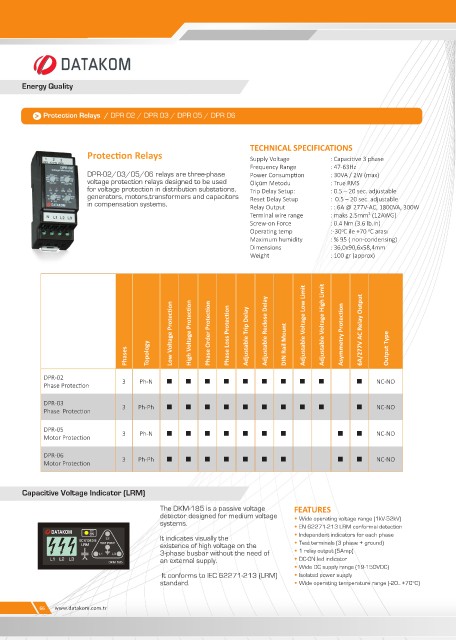

P. 66

Energy Quality



             Protection Relays  / DPR 02 / DPR 03 / DPR 05 / DPR 06



                                                                    TECHNICAL SPECIFICATIONS
                        Protection Relays                           Supply Voltage        : Capacitive 3 phase
                                                                    Frequency Range       : 47-63Hz
                        DPR-02/03/05/06 relays are three-phase      Power Consumption     : 30VA / 2W (max)
                        voltage protection relays designed to be used   Ölçüm Metodu      : True RMS
                        for voltage protection in distribution substations,   Trip Delay Setup:      : 0.5 – 20 sec. adjustable
                        generators, motors,transformers and capacitors   Reset Delay Setup     :  0.5 – 20 sec. adjustable
                        in compensation systems.                    Relay Output          : : 6A @ 277V-AC, 1800VA, 300W
                                                                    Terminal wire range    : maks 2.5mm² (12AWG)
                                                                    Screw-on Force        : 0.4 Nm (3.6 lb.in)
                                                                                             o
                                                                                                    o
                                                                    Operating temp        : -30 C ile +70  C arası
                                                                    Maximum humidity      : % 95 ( non-condensing)
                                                                    Dimensions            : 36,0x90,6x58,4mm
                                                                    Weight                : 100 gr (approx)





                                               Low Voltage Protection  High Voltage Protection  Phase Order Protection  Phase Loss Protection  Adjustable Trip Delay  Adjustable Reclose Delay  DIN Rail Mount  Adjustable Voltage Low Limit  Adjustable Voltage High Limit  Asymmetry Protection  6A/277V AC Relay Output






                                   Phases  Topology                                                      Output Type



             DPR-02               3   Ph-N                                                            NC-NO
             Phase Protection                 ■    ■    ■    ■    ■    ■    ■    ■     ■         ■

             DPR-03
             Phase  Protection    3   Ph-Ph   ■    ■    ■    ■    ■    ■    ■    ■     ■         ■    NC-NO

             DPR-05               3   Ph-N                                                            NC-NO
             Motor Protection                 ■    ■    ■    ■    ■    ■    ■               ■    ■

             DPR-06
             Motor Protection     3   Ph-Ph   ■    ■    ■    ■    ■    ■    ■               ■    ■    NC-NO



       Capacitive Voltage Indicator (LRM)

                                            The DKM-185 is a passive voltage    FEATURES
                                            detector designed for medium voltage   • Wide operating voltage range (1kV-52kV)
                                            systems.
                                                                                • EN 62271-213 LRM conformal detection
                                                                                • Independent indicators for each phase
                                            It indicates visually the
                                            existence of high voltage on the    • Test terminals (3 phase + ground)
                                            3-phase busbar without the need of   • 1 relay output (5Amp)
                                            an external supply.                 • DC-ON led indicator
                                                                                • Wide DC supply range (19-150VDC)
                                             It conforms to IEC 62271-213 (LRM)   • Isolated power supply
                                            standard.                           • Wide operating temperature range (-20...+70°C)


            66  www.datakom.com.tr
