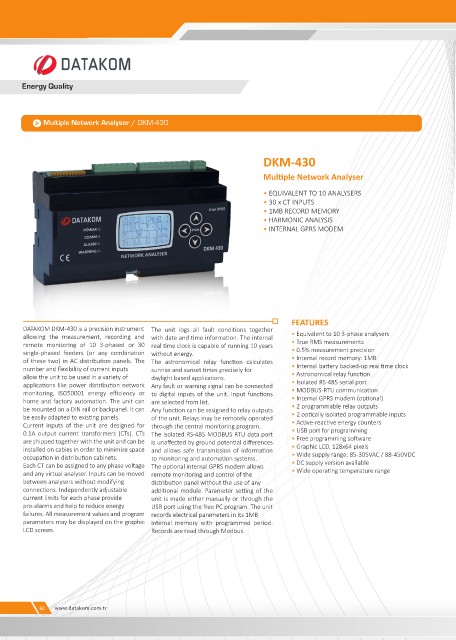

Page 60 - catalogue-2024
P. 60

Energy Quality




             Multiple Network Analyser / DKM-430




                                                                        DKM-430

                                                                        Multiple Network Analyser

                                                                        • EQUIVALENT TO 10 ANALYSERS
                                                                        • 30 x CT INPUTS
                                                                        • 1MB RECORD MEMORY
                                                                        • HARMONIC ANALYSIS
                                                                        • INTERNAL GPRS MODEM













                                                                               FEATURES
       DATAKOM DKM-430 is a precision instrument  The  unit  logs  all  fault  conditions  together
       allowing  the  measurement,  recording  and  with date and time information. The internal   • Equivalent to 10 3-phase analysers
       remote  monitoring  of  10  3-phased  or  30  real time clock is capable of running 10 years   • True RMS measurements
       single-phased  feeders  (or  any  combination  without energy.          • 0.5% measurement precision
       of these two) in AC distribution panels. The  The  astronomical  relay  function  calculates   • Internal record memory: 1MB
       number and flexibility of current inputs  sunrise and sunset times precisely for   • Internal battery backed-up real time clock
       allow the unit to be used in a variety of   daylight based applications.  • Astronomical relay function
       applications like power distribution network  Any fault or warning signal can be connected   • Isolated RS-485 serial port
       monitoring,  ISO50001  energy  efficiency  or  to digital inputs of the unit. Input functions   • MODBUS-RTU communication
       home and factory automation. The unit can  are selected from list.      • Internal GPRS modem (optional)
                                                                               • 2 programmable relay outputs
       be mounted on a DIN rail or backpanel. It can  Any function can be assigned to relay outputs
       be easily adapted to existing panels.  of the unit. Relays may be remotely operated   • 2 optically isolated programmable inputs
       Current  inputs  of  the  unit  are  designed  for  through the central monitoring program.  • Active-reactive energy counters
       0.1A  output  current  transformers  (CTs).  CTs  The isolated RS-485 MODBUS RTU data port   • USB port for programming
       are shipped together with the unit and can be  is unaffected by ground potential differences   • Free programming software
                                                                               • Graphic LCD, 128x64 pixels
       installed on cables in order to minimize space  and  allows  safe  transmission of  information
       occupation in distribution cabinets.  to monitoring and automation systems.  • Wide supply range: 85-305VAC / 88-450VDC
       Each CT can be assigned to any phase voltage  The optional internal GPRS modem allows   • DC supply version available
       and any virtual analyser. Inputs can be moved  remote monitoring and control of the   • Wide operating temperature range
       between analysers without modifying   distribution panel without the use of any
       connections. Independently adjustable   additional module. Parameter setting of the
       current limits for each phase provide   unit is made either manually or through the
       pre-alarms and help to reduce energy   USB port using the free PC program. The unit
       failures. All measurement values and program  records electrical parameters in its 1MB
       parameters may be displayed on the graphic  internal  memory with  programmed  period.
       LCD screen.                        Records are read through Modbus.
