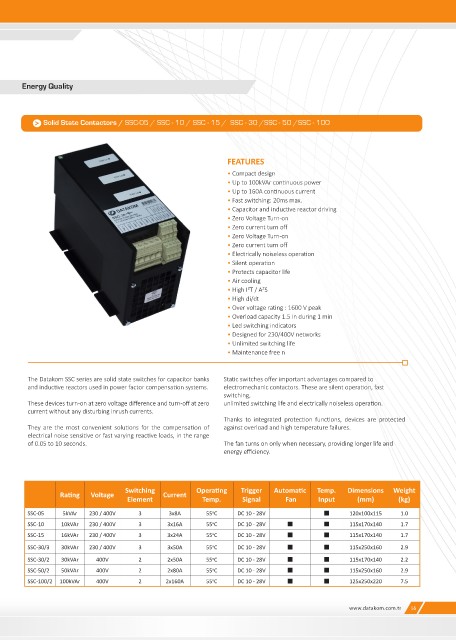

P. 55

Energy Quality




             Solid State Contactors / SSC-05 / SSC - 10 / SSC - 15 /  SSC - 30 /SSC - 50 /SSC - 100




                                                              FEATURES
                                                              • Compact design
                                                              • Up to 100kVAr continuous power
                                                              • Up to 160A continuous current
                                                              • Fast switching: 20ms max.
                                                              • Capacitor and inductive reactor driving
                                                              • Zero Voltage Turn-on
                                                              • Zero current turn off
                                                              • Zero Voltage Turn-on
                                                              • Zero current turn off
                                                              • Electrically noiseless operation
                                                              • Silent operation
                                                              • Protects capacitor life
                                                              • Air cooling
                                                              • High I²T / A²S
                                                              • High di/dt
                                                              • Over voltage rating : 1600 V peak
                                                              • Overload capacity 1.5 In during 1 min
                                                              • Led switching indicators
                                                              • Designed for 230/400V networks
                                                              • Unlimited switching life
                                                              • Maintenance free n



        The Datakom SSC series are solid state switches for capacitor banks   Static switches offer important advantages compared to
        and inductive reactors used in power factor compensation systems.  electromechanic contactors. These are silent operation, fast
                                                             switching,
        These devices turn-on at zero voltage difference and turn-off at zero   unlimited switching life and electrically noiseless operation.
        current without any disturbing inrush currents.
                                                             Thanks  to  integrated  protection  functions,  devices  are  protected
        They  are  the  most  convenient  solutions  for  the  compensation  of   against overload and high temperature failures.
        electrical noise sensitive or fast varying reactive loads, in the range
        of 0.05 to 10 seconds.                               The fan turns on only when necessary, providing longer life and
                                                             energy efficiency.




                                   Switching          Operating   Trigger   Automatic  Temp.   Dimensions  Weight
                 Rating  Voltage             Current
                                   Element             Temp.      Signal      Fan      Input     (mm)       (kg)
        SSC-05    5kVAr  230 / 400V   3       3x8A      55 C     DC 10 - 28V            ■      120x100x115   1.0
                                                          o
        SSC-10   10kVAr  230 / 400V   3       3x16A     55 C     DC 10 - 28V  ■         ■      115x170x140   1.7
                                                          o
        SSC-15   16kVAr  230 / 400V   3       3x24A     55 C     DC 10 - 28V  ■         ■      115x170x140   1.7
                                                          o
        SSC-30/3  30kVAr  230 / 400V  3       3x50A     55 C     DC 10 - 28V  ■         ■      115x250x160   2.9
                                                          o
        SSC-30/2  30kVAr   400V       2       2x50A     55 C     DC 10 - 28V  ■         ■      115x170x140   2.2
                                                          o
        SSC-50/2  50kVAr   400V       2       2x80A     55 C     DC 10 - 28V  ■         ■      115x250x160   2.9
                                                          o
        SSC-100/2  100kVAr  400V      2       2x160A    55 C     DC 10 - 28V  ■         ■      125x250x220   7.5
                                                          o


                                                                                               www.datakom.com.tr  55
