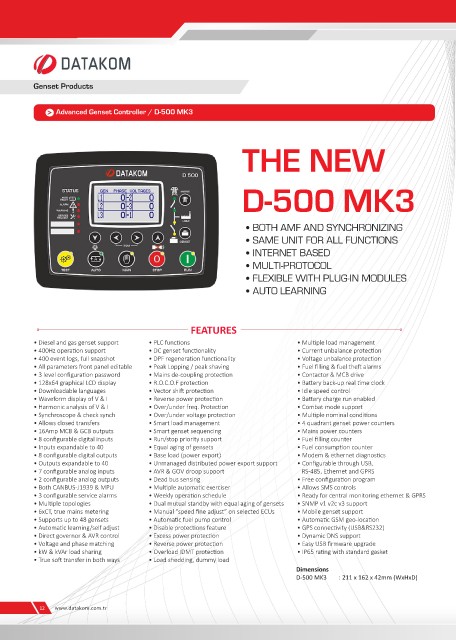

Page 12 - catalogue-2024

Genset Products

Advanced Genset Controller / D-500 MK3

THE NEW

D-500 MK3

• BOTH AMF AND SYNCHRONIZING
• SAME UNIT FOR ALL FUNCTIONS

• INTERNET BASED
• MULTI-PROTOCOL
• FLEXIBLE WITH PLUG-IN MODULES
• AUTO LEARNING

FEATURES

• Diesel and gas genset support • PLC functions • Multiple load management
• 400Hz operation support • DC genset functionality • Current unbalance protection
• 400 event logs, full snapshot • DPF regeneration functionality • Voltage unbalance protection
• All parameters front panel editable • Peak Lopping / peak shaving • Fuel filling & fuel theft alarms
• 3 level configuration password • Mains de-coupling protection • Contactor & MCB drive
• 128x64 graphical LCD display • R.O.C.O.F protection • Battery back-up real time clock
• Downloadable languages • Vector shift protection • Idle speed control
• Waveform display of V & I • Reverse power protection • Battery charge run enabled
• Harmonic analysis of V & I • Over/under freq. Protection • Combat mode support
• Synchroscope & check synch • Over/under voltage protection • Multiple nominal conditions
• Allows closed transfers • Smart load management • 4 quadrant genset power counters
• 16Amp MCB & GCB outputs • Smart genset sequencing • Mains power counters
• 8 configurable digital inputs • Run/stop priority support • Fuel filling counter
• Inputs expandable to 40 • Equal aging of gensets • Fuel consumption counter
• 8 configurable digital outputs • Base load (power export) • Modem & ethernet diagnostics
• Outputs expandable to 40 • Unmanaged distributed power export support • Configurable through USB,
• 7 configurable analog inputs • AVR & GOV droop support RS-485, Ethernet and GPRS
• 2 configurable analog outputs • Dead bus sensing • Free configuration program
• Both CANBUS-J1939 & MPU • Multiple automatic exerciser • Allows SMS controls
• 3 configurable service alarms • Weekly operation schedule • Ready for central monitoring ethernet & GPRS
• Multiple topologies • Dual mutual standby with equal aging of gensets • SNMP v1 v2c v3 support
• 6xCT, true mains metering • Manual “speed fine adjust” on selected ECUs • Mobile genset support
• Supports up to 48 gensets • Automatic fuel pump control • Automatic GSM geo-location
• Automatic learning/self adjust • Disable protections feature • GPS connectivity (USB&RS232)
• Direct governor & AVR control • Excess power protection • Dynamic DNS support
• Voltage and phase matching • Reverse power protection • Easy USB firmware upgrade
• kW & kVAr load sharing • Overload IDMT protection • IP65 rating with standard gasket
• True soft transfer in both ways • Load shedding, dummy load
Dimensions
D-500 MK3 : 211 x 162 x 42mm (WxHxD)
