Genset Products

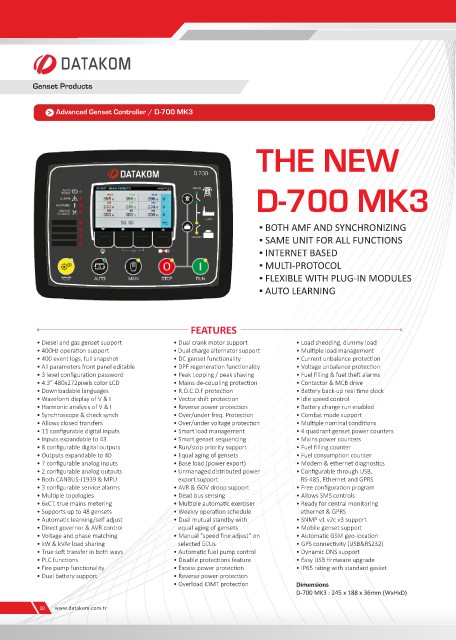

Advanced Genset Controller / D-700 MK3
THE NEW
D-700 MK3
▪ BOTH AMF AND SYNCHRONIZING
▪ SAME UNIT FOR ALL FUNCTIONS
▪ INTERNET BASED
▪ MULTI-PROTOCOL
▪ FLEXIBLE WITH PLUG-IN MODULES
▪ AUTO LEARNING
FEATURES
• Diesel and gas genset support • Dual crank motor support • Load shedding, dummy load
• 400Hz operation support • Dual charge alternator support • Multiple load management
• 400 event logs, full snapshot • DC genset functionality • Current unbalance protection
• All parameters front panel editable • DPF regeneration functionality • Voltage unbalance protection
• 3 level configuration password • Peak Lopping / peak shaving • Fuel filling & fuel theft alarms
• 4.3” 480x272pixels color LCD • Mains de-coupling protection • Contactor & MCB drive
• Downloadable languages • R.O.C.O.F protection • Battery back-up real time clock
• Waveform display of V & I • Vector shift protection • Idle speed control
• Harmonic analysis of V & I • Reverse power protection • Battery charge run enabled
• Synchroscope & check synch • Over/under freq. Protection • Combat mode support
• Allows closed transfers • Over/under voltage protection • Multiple nominal conditions
• 11 configurable digital inputs • Smart load management • 4 quadrant genset power counters
• Inputs expandable to 43 • Smart genset sequencing • Mains power counters
• 8 configurable digital outputs • Run/stop priority support • Fuel filling counter
• Outputs expandable to 40 • Equal aging of gensets • Fuel consumption counter
• 7 configurable analog inputs • Base load (power export) • Modem & ethernet diagnostics
• 2 configurable analog outputs • Unmanaged distributed power • Configurable through USB,
• Both CANBUS-J1939 & MPU export support RS-485, Ethernet and GPRS
• 3 configurable service alarms • AVR & GOV droop support • Free configuration program
• Multiple topologies • Dead bus sensing • Allows SMS controls
• 6xCT, true mains metering • Multiple automatic exerciser • Ready for central monitoring
• Supports up to 48 gensets • Weekly operation schedule ethernet & GPRS
• Automatic learning/self adjust • Dual mutual standby with • SNMP v1 v2c v3 support
• Direct governor & AVR control equal aging of gensets • Mobile genset support
• Voltage and phase matching • Manual “speed fine adjust” on • Automatic GSM geo-location
• kW & kVAr load sharing selected ECUs • GPS connectivity (USB&RS232)
• True soft transfer in both ways • Automatic fuel pump control • Dynamic DNS support
• PLC functions • Disable protections feature • Easy USB firmware upgrade
• Fire pump functionality • Excess power protection • IP65 rating with standard gasket
• Dual battery support • Reverse power protection
• Overload IDMT protection Dimensions
D-700 MK3 : 245 x 188 x 36mm (WxHxD)
10 www.datakom.com.tr
