Rx
Tx
POWER

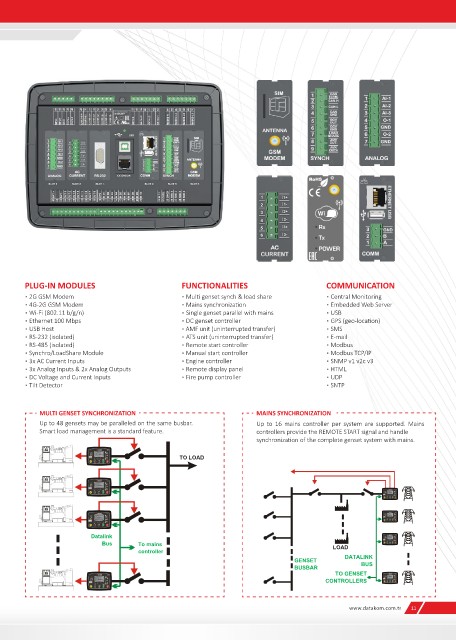

PLUG-IN MODULES FUNCTIONALITIES COMMUNICATION
▪ 2G GSM Modem ▪ Multi genset synch & load share ▪ Central Monitoring
▪ 4G-2G GSM Modem ▪ Mains synchronization ▪ Embedded Web Server
▪ Wi-Fi (802.11 b/g/n) ▪ Single genset parallel with mains ▪ USB
▪ Ethernet 100 Mbps ▪ DC genset controller ▪ GPS (geo-location)
▪ USB Host ▪ AMF unit (uninterrupted transfer) ▪ SMS
▪ RS-232 (isolated) ▪ ATS unit (uninterrupted transfer) ▪ E-mail
▪ RS-485 (isolated) ▪ Remote start controller ▪ Modbus
▪ Synchro/LoadShare Module ▪ Manual start controller ▪ Modbus TCP/IP
▪ 3x AC Current Inputs ▪ Engine controller ▪ SNMP v1 v2c v3
▪ 3x Analog Inputs & 2x Analog Outputs ▪ Remote display panel ▪ HTML
▪ DC Voltage and Current Inputs ▪ Fire pump controller ▪ UDP
▪ Tilt Detector ▪ SNTP

MULTI GENSET SYNCHRONIZATION MAINS SYNCHRONIZATION
Up to 48 gensets may be paralleled on the same busbar. Up to 16 mains controller per system are supported. Mains
Smart load management is a standard feature. controllers provide the REMOTE START signal and handle
synchronization of the complete genset system with mains.

TO LOAD

Datalink
Bus To mains LOAD
controller
GENSET DATALINK
BUSBAR BUS
TO GENSET
CONTROLLERS
