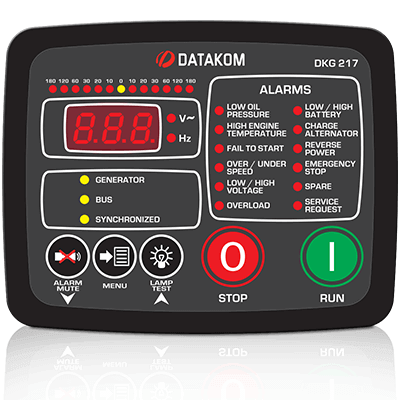

DKG-217 MANUAL AND REMOTE START UNIT
WITH SYNCHROSCOPE AND CHECK SYNCH RELAY
The DKG-217 is an innovative generator control unit integrating 4 different functions needed for manually synchronized parallel gensets in a zero power consumption at rest structure.
Integrated functions are:
- a manual start unit with power metering
- a remote start unit
- a led bargraph synchroscope
- a configurable check synch relay
The DKG-217 is designed to operate both manually and remotely. The manual control is made using the pushbuttons on the front panel.
The remote control is made via the REMOTE START input signal.
The RUN and STOP pushbuttons select the operating mode. Other buttons select the display parameter scroll, alarm mute and lamp test functions.
Manual starting and stopping
Zero power consumption at rest
Remote Start operation available
LED bargraph synchroscope
Programmable ΔV, Δf, Δθ for check synch relay
Engine control
Generator protection
Built in alarms and warnings
3 phase genset voltage inputs
1 phase genset CT input
1 phase busbar voltage input
Engine oil pressure measurement
Engine coolant temperature measurement
Genset active power measurement (single phase)
Genset power factor measurement (single phase)
Periodic maintenance request indicator
Engine hours run counter
Event logging
Statistical counters
Front panel configurable
100+ adjustable parameters
Logic level serial port
Optional RS-232 adapter
Free MS-Windows Remote monitoring SW:
-local, LAN, IP and modem connection
-monitoring, download of parameters
LED displays
Configurable analogue inputs: 2
Configurable digital inputs: 5
Configurable relay outputs: 2
Total relay outputs: 5
Survives cranking dropouts
Sealed front panel
Plug-in connection system for easy replacement
Small dimensions (130x100x39mm)
- a manual start unit with power metering
- a remote start unit
- a led bargraph synchroscope
- a configurable check synch relay
