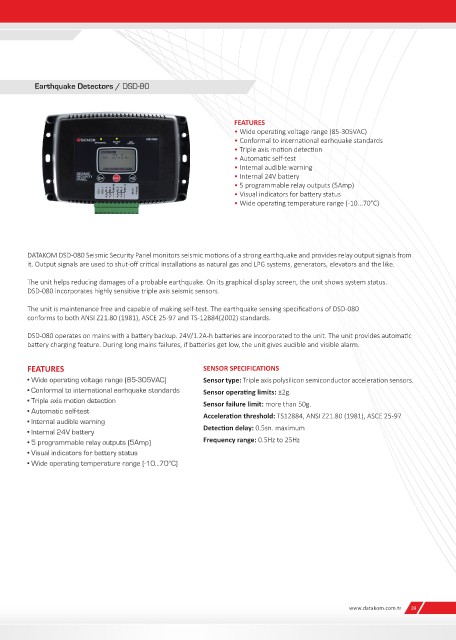

Page 39 - catalogue-2024

Earthquake Detectors / DSD-80

FEATURES
• Wide operating voltage range (85-305VAC)
• Conformal to international earhquake standards
• Triple axis motion detection
• Automatic self-test
• Internal audible warning
• Internal 24V battery
• 5 programmable relay outputs (5Amp)
• Visual indicators for battery status
• Wide operating temperature range (-10...70°C)

DATAKOM DSD-080 Seismic Security Panel monitors seismic motions of a strong earthquake and provides relay output signals from
it. Output signals are used to shut-off critical installations as natural gas and LPG systems, generators, elevators and the like.
The unit helps reducing damages of a probable earthquake. On its graphical display screen, the unit shows system status.
DSD-080 incorporates highly sensitive triple axis seismic sensors.

The unit is maintenance free and capable of making self-test. The earthquake sensing specifications of DSD-080
conforms to both ANSI Z21.80 (1981), ASCE 25-97 and TS-12884(2002) standards.

DSD-080 operates on mains with a battery backup. 24V/1.2A-h batteries are incorporated to the unit. The unit provides automatic
battery charging feature. During long mains failures, if batteries get low, the unit gives audible and visible alarm.

FEATURES SENSOR SPECIFICATIONS
• Wide operating voltage range (85-305VAC) Sensor type: Triple axis polysilicon semiconductor acceleration sensors.
• Conformal to international earhquake standards Sensor operating limits: ±2g.
• Triple axis motion detection Sensor failure limit: more than 50g.
• Automatic self-test Acceleration threshold: TS12884, ANSI Z21.80 (1981), ASCE 25-97
• Internal audible warning
• Internal 24V battery Detection delay: 0.5sn. maximum
• 5 programmable relay outputs (5Amp) Frequency range: 0.5Hz to 25Hz
• Visual indicators for battery status
• Wide operating temperature range (-10...70°C)

www.datakom.com.tr 39
