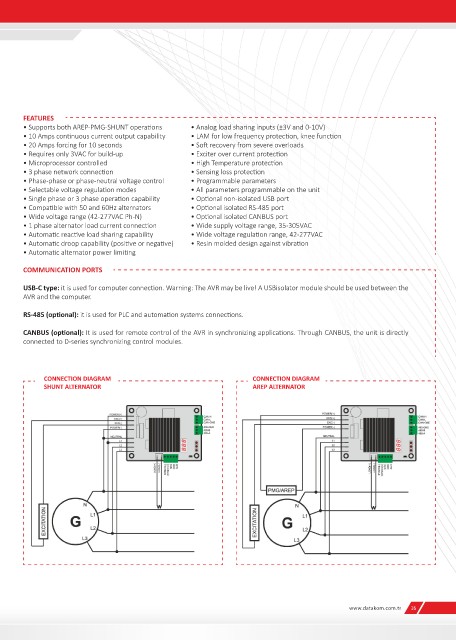

FEATURES
• Supports both AREP-PMG-SHUNT operations • Analog load sharing inputs (±3V and 0-10V)
• 10 Amps continuous current output capability • LAM for low frequency protection, knee function
• 20 Amps forcing for 10 seconds • Soft recovery from severe overloads
• Requires only 3VAC for build-up • Exciter over current protection
• Microprocessor controlled • High Temperature protection
• 3 phase network connection • Sensing loss protection
• Phase-phase or phase-neutral voltage control • Programmable parameters
• Selectable voltage regulation modes • All parameters programmable on the unit
• Single phase or 3 phase operation capability • Optional non-isolated USB port
• Compatible with 50 and 60Hz alternators • Optional isolated RS-485 port
• Wide voltage range (42-277VAC Ph-N) • Optional isolated CANBUS port
• 1 phase alternator load current connection • Wide supply voltage range, 35-305VAC
• Automatic reactive load sharing capability • Wide voltage regulation range, 42-277VAC
• Automatic droop capability (positive or negative) • Resin molded design against vibration
• Automatic alternator power limiting
COMMUNICATION PORTS

USB-C type: it is used for computer connection. Warning: The AVR may be live! A USBisolator module should be used between the
AVR and the computer.

RS-485 (optional): it is used for PLC and automation systems connections.

CANBUS (optional): It is used for remote control of the AVR in synchronizing applications. Through CANBUS, the unit is directly
connected to D-series synchronizing control modules.

CONNECTION DIAGRAM CONNECTION DIAGRAM
SHUNT ALTERNATOR AREP ALTERNATOR
