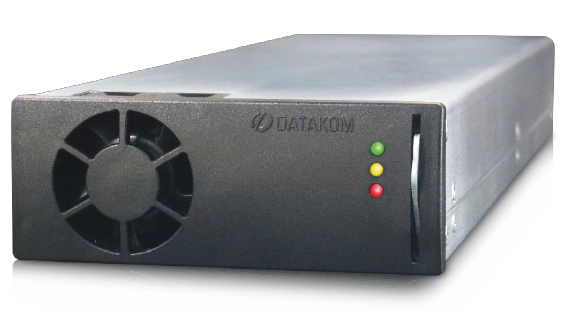

SUPER HIGH EFFICIENCY TELECOM RECTIFIER

BC-3000/48-R1 series are state of the art telecom rectifiers featuring very high efficiency and low cost in a compact brick type 1U package. The peak efficiency of rectifiers exceeds 98.0%, resulting in lower long-term operational costs. Rectifiers have universal input voltage range, enabling the use in all countries with nominal voltages ranging from 110VAC to 240VAC. The rectifier offers “hot plug-in” and “soft start” features. It can be paralleled up to 16 units and the system output may be increased to 48kW. Rectifiers perform load sharing automatically without the need for an external unit.

Read More...

The rectifier is protected against abnormal operating conditions including low/high supply voltage, overload, short circuit and high temperature. In case of overheating, the charger will automatically reduce its output current and continue normal operation. The cooling is performed with internal fan. Thanks to the high efficiency, the need for fan is minimised. The charger holds last 200 event records in its non-erasable memory. The unit records also all operating parameters in its memory every 10 minutes. Last 1 year’s records can be read.

•High efficiency, 98.0%

•Wide operating voltage range (85-264VAC)

•Wide output voltage range (48-58VDC)

•High output power: 56A / 3000W

•Compact dimensions, 33.8 Watt/inch3 energy density

•Microprocessor controlled

•CANBUS communications

•Support for external voltage and current setting

•Accurate mains measurements: V-A-W

•Hot plug-in

•Soft start

•Parallel operation and automatic load sharing

•Low/high mains voltage protections

•Overload and short-circuit protections

•High temperature protection

•Wide operating temperature range

•Low output noise

•Low sensitivity against line and load changes

•ROHS compliant
