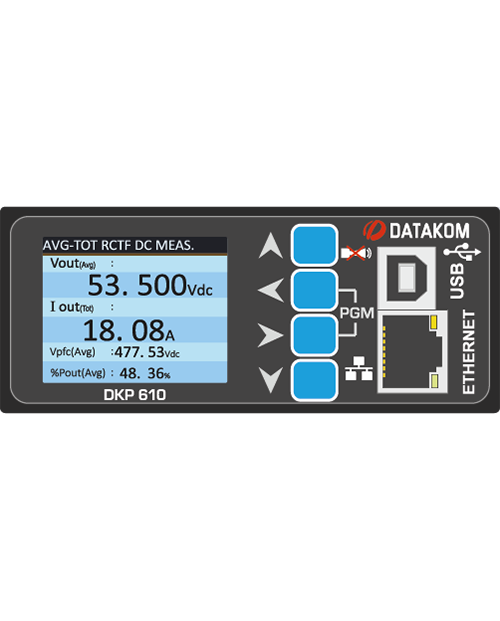

DKP-610 Rectifier Control Module

Home | Telecom Rectifier Control Module | DKP-610 Rectifier Control Module

DKP-610 is a state-of-the-art module allowing monitoring and control of up to 128 rectifiers. The module communicates with the rectifiers through its CANBUS port in order to read live data and send commands. The module communicates with central monitoring systems through its ethernet port. The module has a smart algorithm allowing the operation of rectifiers at their best efficiency range. In order to increase the system efficiency, the module is capable of shutting-off some of the rectifiers. The module offers smart battery charging algorithms.

Previous Next

•128x160 pixel colour graphic display

•Easy programming with simple menu system

•All parameters front panel programmable

•Support for various battery charging algorithms

•Temperature compensated battery charging

•100 Megabit ethernet port

•Optional internal 4G GSM modem

•Embedded website, easy access with browser

•SNMP V1-V2-V3 support for centralized monitoring

•Compatible with Rainbow Scada monitoring system

•Rainbow Scada enabled mobile phone app

•USB port for PC connection

•Free PC programming software: Rainbow Plus

•CANBUS port for rectifier communications

•Optional spare CANBUS port

•Optional isolated RS-485 port

•3 load shedding contactor outputs

•6 alarm relay outputs

•3 battery shunt inputs, 3 battery voltage inputs

•4 temperature measurement inputs

•3 mains voltage measurement inputs

•Mains contactor control relay output

•Small dimensions: 100x41x158mm (WxHxD)

•Wide operating temperature range
