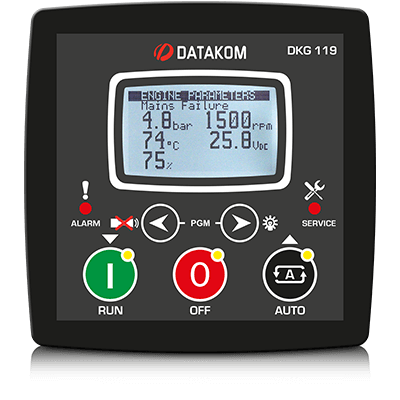

The DKG-119 is a comprehensive generator control unit designed to start and stop the generating set both manually and remotely. The manual control is made using the pushbuttons on the front panel. The remote control is made via the REMOTE START input signal.

The operation of the unit is controlled with front panel pushbuttons. The RUN, AUTO and STOP pushbuttons select the operating mode. Other buttons select the display parameter scroll, alarm mute and lamp test functions.

The standard model has MPU inputs. The DKG-119J model has CANBUS inputs.


The DKG-119 provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations and operating sequences. The unauthorized access to program parameters is prevented by a 3 level password protection. All programs may be modified via front panel pushbuttons, and do not require an external unit.

True RMS measurements

Both manual and remote starting and stopping

Engine control

Gas engine support

Engine idle speed control

Generator protection

Built in alarms and warnings

Magnetic pickup input

Remote Start operation

Dual genset mutual standby operation

Load shedding, dummy load

Periodic maintenance request indicator

Event logging with measurements

Statistical counters

Field adjustable parameters

Logic level serial port

Firmware downloadable from serial port

Free MS-Windows Remote monitoring SW:

    -monitoring and control

    -download of parameters

    -upload of parameters

GSM SMS message sending on fault

MODBUS communications

Graphic LCD display (128x64 pixels)

User friendly graphic indicators

Triple language support

Customer logo display capability

Protected semiconductor digital outputs

Configurable analogue inputs: 3

Configurable digital inputs: 5

Configurable relay outputs: 2

Total relay outputs: 4

Survives cranking dropouts

Sealed front panel

Plug-in connection system for easy replacement
