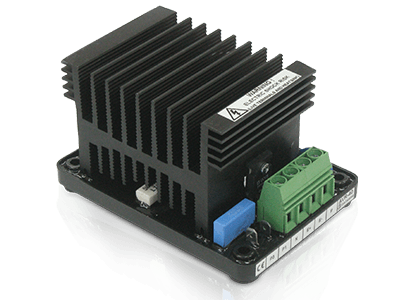

AVR-40 ALTERNATOR VOLTAGE REGULATOR
AVR-40 is an electronic device which lets the alternator to produce a fixed output voltage.
Thanks to its high output current and oversized heatsink, it is capable of operating in exteremely hot conditions and driving alternators requiring high excitation currents.
The sensing loss protection circuit disables the output when there is no voltage on the sensing input.
A ±3V analogue input is provided allowing external voltage adjustment. The AVR has the facility for droop CT connection, to allow parallel running with other similarly equipped generators.
An overload protection circuit limits the output current to its nominal value, preventing device failure under overload or short circuit condition.Read More...
The device has open chassis, resin molded design and is intended to be mounted in the alternator’s terminal box. The unit does not include moving parts; therefore it is able to operate in highly vibrating environments.
The device measures phase to neutral of the alternator and adjusts the DC voltage applied to the excitation winding in order to reach the desired voltage.
The unit offers low-frequency protection feature. A frequency measuring circuit continually monitors the generator output and provides low-frequency protection of the excitation system, by reducing the output voltage proportionally with frequency below 45Hz.
40 Amps continuous output current
Half-Wave thyristor output
Designed for highly vibrating environment
Built in voltage adjustment
Compatible with various types of alternators
External trimmer voltage adjustment input
Analogue voltage adjustment input
Droop input for parallel running
Sensing input provides phase-phase or phase-neutral control
Compatible for 50 and 60 Hz
Low frequency protection
Exciter over current protection
High Temperature protection
Sensing loss protection
